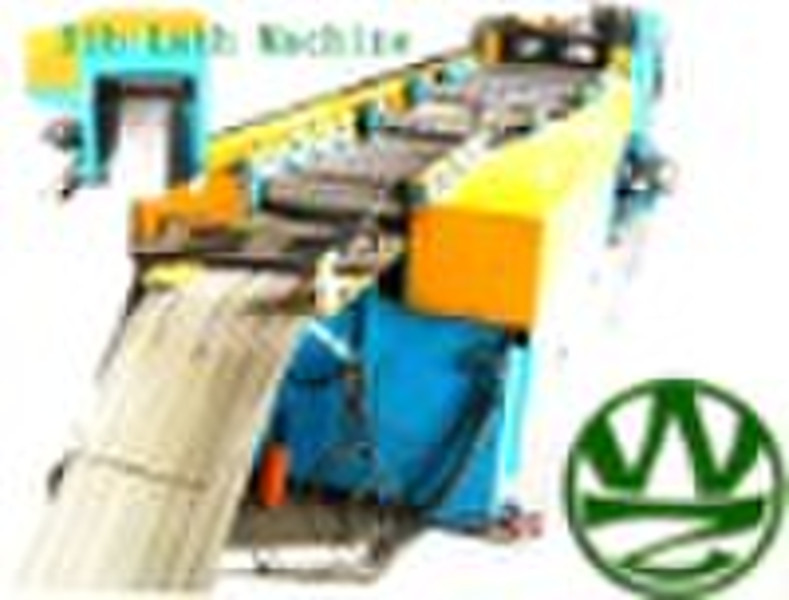

contruction hi hy rib lath mesh machine

wanzhi wire mesh machine factory is the leading rib lath machine factory in china mainland The Hi-rib lath production line Working process: De-coil → punching → expanding and shearing → Rib lath feed out The full production line includes the following equipments: 1 set of simple de-coiler (inner dia.: min 400mm; loading weight: 1000kg) 1 set of punching machine Punching speed: 180 times/min Punching force: 250KN Punching mould material: TC53 Overall size: 1325*990*2140mm 1 set of expanded main machine with shearer Main motor power: 4 kw Cutting motor: 3kw mould material: GCR12 Speed: Max. 4m / minutes Overall size: 5m*1m*1.5m 1 set of Feeding device 1 set of collecting Table (Max. Length: 3,000mm) Occupy area: 11m*2m*2.5m hy rib lath machine rib lathe machine rib lath machine manufacturer from china rib lath factory
